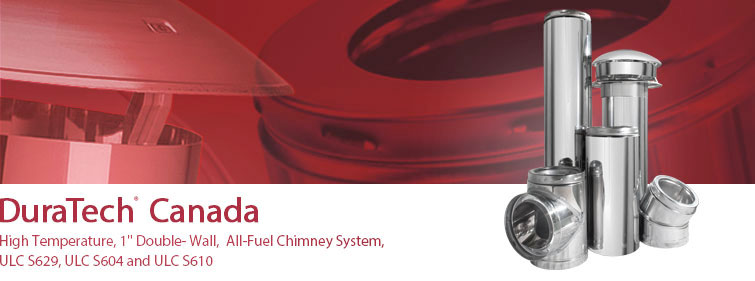

DuraTech Canada (DTC) is a double-wall, all-fuel chimney system for use with wood stoves, wood fireplaces and other appliances using wood, oil, gas, or coal. The use of stainless steel, selected for its resistance to high temperatures and corrosion, lends outstanding durability to the DuraTech Canada high-temperature chimney.
DuraTech Canada features 1″ of high-temperature mineral fiber insulation. This insulation minimizes heat loss through the chimney walls and can withstand intense heat. The free-floating inner lining is attached only to the male coupler at the top, expanding and contracting freely with temperature fluctuations. The external casing carries the structural load. All DTC pipe lengths, elbows, and other fittings feature fast and easy twist-lock assembly with just one-eighth turn. Even better, DTC uses universal support hardware to speed up installation and to dramatically reduce the number of SKUs you need to keep in inventory.
Applications
DuraTech Canada (DTC) is a double-wall, all-fuel chimney system for use with wood stoves, wood fireplaces and other appliances using wood, oil, gas, or coal.
Materials and Construction
.016” 441 stainless steel inner wall.
.016” 430 stainless steel outer wall.
1” high-temperature mineral
Fiber insulation
Clearances
2″ clearance to combustibles
Diameters
6″, 7″, 8″
(5″ & 10″ contact for availability)
Listings
ULC S629, ULC S604 and ULC S610
Refer to our Typical Venting Installation drawings to select the appropriate component parts for your installation.
More Typical Installations:
Installation Key | |
---|---|
1 | Elbow |
2 | Wall Radiation Shield |
3 | Length |
4 | Re-Support |
5 | Attic Radiation Shield |
6 | Adjustable Roof Flashing |
7 | Vertical Cap |
8 | Firestop |
9 | Floor Support |
10 | Black Stove Pipe |
11 | Finishing Support |
12 | Telescopic Rigid Shield |
13 | Radiation Shield Connector |
14 | Storm Collar |
15 | Radiation Shield Connector Firestop |
16 | Flashing |
